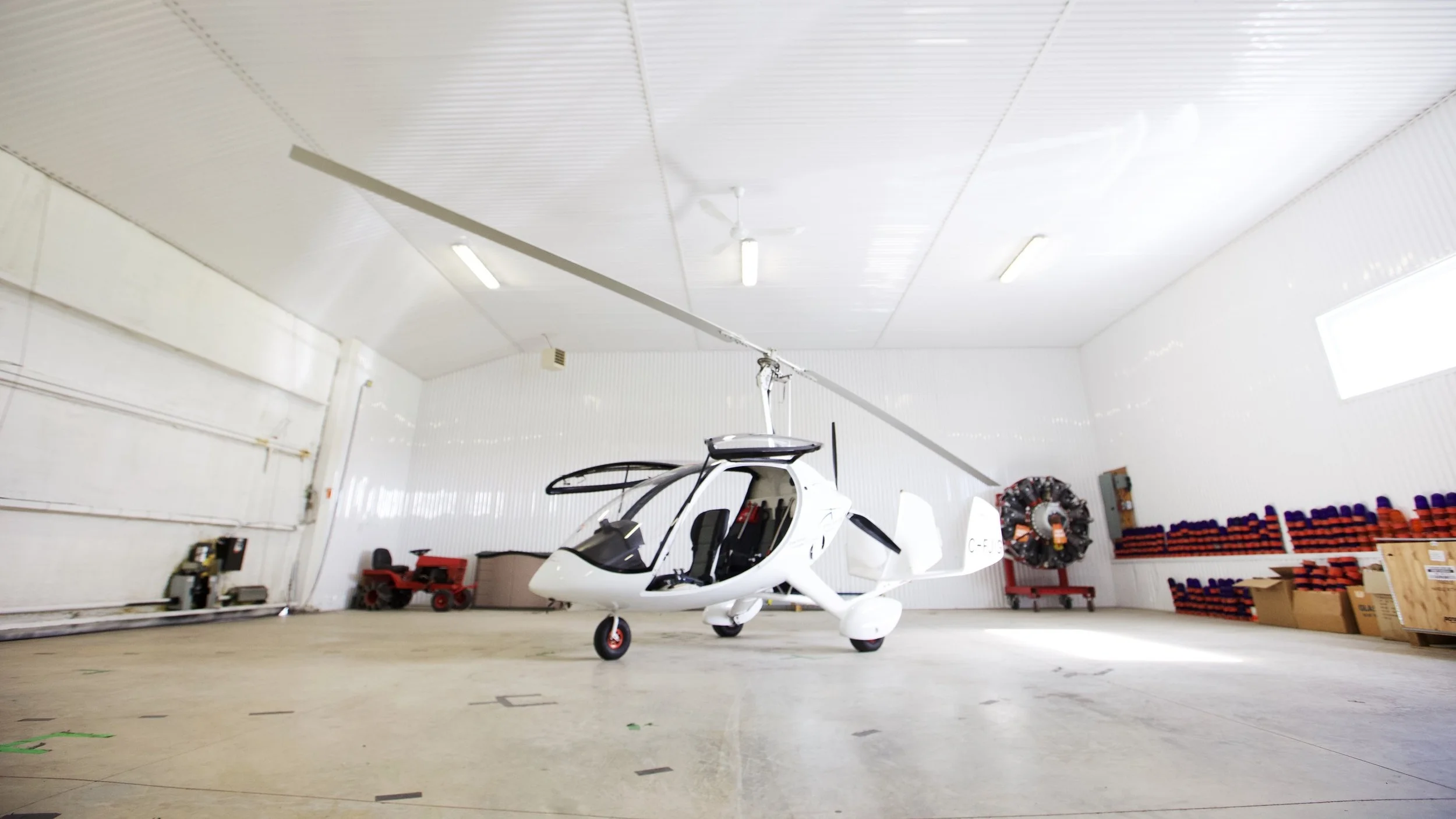

j-ro
MANUFACTURED BY DTA
Made in France, the DTA J-RO offers consistent quality, functional design, and robust construction. Form without sacrificing function yields an attractive design that performs as great as it looks.
beautiful aesthetics
The symmetrical teardrop design of the cabin is both functional and elegant. The J-RO has removable butterfly doors to allow open air flight in the summertime and an enclosed cockpit for cooler weather.
designed with comfortability
With an adjustable pilot seat and a well upholstered rear seat the J-RO is truly a comfortable cabin for hours of cross country flying. Tall pilot and passengers alike have been impressed with how much room the cabin offers.
PANORAMIC VIews
A design implemented to minimize blind spots and maximize visibility, the J-RO never ceases to impress. With windows from the top to the bottom of the gull wing doors, an elevated rear seat and a large front canopy windshield both occupants experience the view of a lifetime.
high performance
With available turbocharged Rotax 914 and strong pre-rotation capabilities the J-RO excites even the most experienced pilot, let alone newcomers!
dependable avionics
Standardly equipped with Kanardia EMSIS and an iPad dock, this configuration mixes modern technology with affordability. Two color digital displays, one for flight instruments and the other for engine monitoring, as well as an iPad dock create an industry leading base cockpit. The optional Dynon HDX Skyview Flight Deck offers a level of situational awareness previously reserved for multi-million dollar aircraft. Integrated radios, transponders, and charting software keep the cockpit clean and efficient. Alerts to oncoming airspace, terrain, and other air traffic help you stay safe.
j-ro
GENERAL SPECIFICATIONS
Seats:
Two/Tandem
Empty Weight:
670-720 lbs
Max Takeoff Weight:
1124-1235 lbs
Maximum Pilot Weight:
242 lbs
Useful Load:
454-535 lbs
PERFORMANCE SPECIFICATIONS
Max Speed
112 mph
Cruise Speed
75-100 mph
Minimum Speed
30 mph
Range
300 sm @ 100 mph
Maximum Climb Rate
500 – 1000 ft/min
Service Ceiling
10,000 – 14,000 feet
Take off Roll (MGTW no wind)
360 feet
Landing Roll (no wind)
98 feet
Maximum Endurance
5 hours + 30 minute reserve
FUEL
Fuel Consumption
3 – 5 gallons/ hour
Fuel Type
Premium Automotive
Fuel Tank Capacity
18.5 gallons
ENGINE
Engine Options
Rotax 912ULS / 914UL
Horsepower
100 / 115
Pre-rotation Range
200-280 RPM
AVIONICS
Standard
Dual Karnadia EMSIS w/ iPad Dock
Optional
Dynon HDX Skyview Flight Deck
PRE-ROTATION & ROTORBLADE
Pre-rotation Engagement
Pneumatic (push button on control stick)
Pre-rotation Protection
Yes
Pre-rotation Interruptible
No
Pre-rotation From Rear Seat
Yes
Rotor Type
NACA 8H12 extruded aluminum (modified Averso)
WARRANTY
Warranty of the Engine
As per Rotax (18 months / 200 hours)
Warranty of Airframe
200 hours / 2 years
DIMENSIONS
Length
17 feet 1 inch
Height
8 feet 7 inches
Width
6 feet 5 inches
Rotor Diameter
28 feet 3 inches
Airframe Construction Material
25CD4s and Stainless Steel 304 alloys
Hull
Carbon/epoxy composite
Tail
Glass/carbon/epoxy composite
Propeller Material
Composite
Power Outlet Voltage
12 volt
Nav/Strobe/Landing Lights
Yes
